GReddy Fuel Rail Nissan GTR R35 GT-R

GReddy Fuel Rail Nissan GTR R35 GT-R

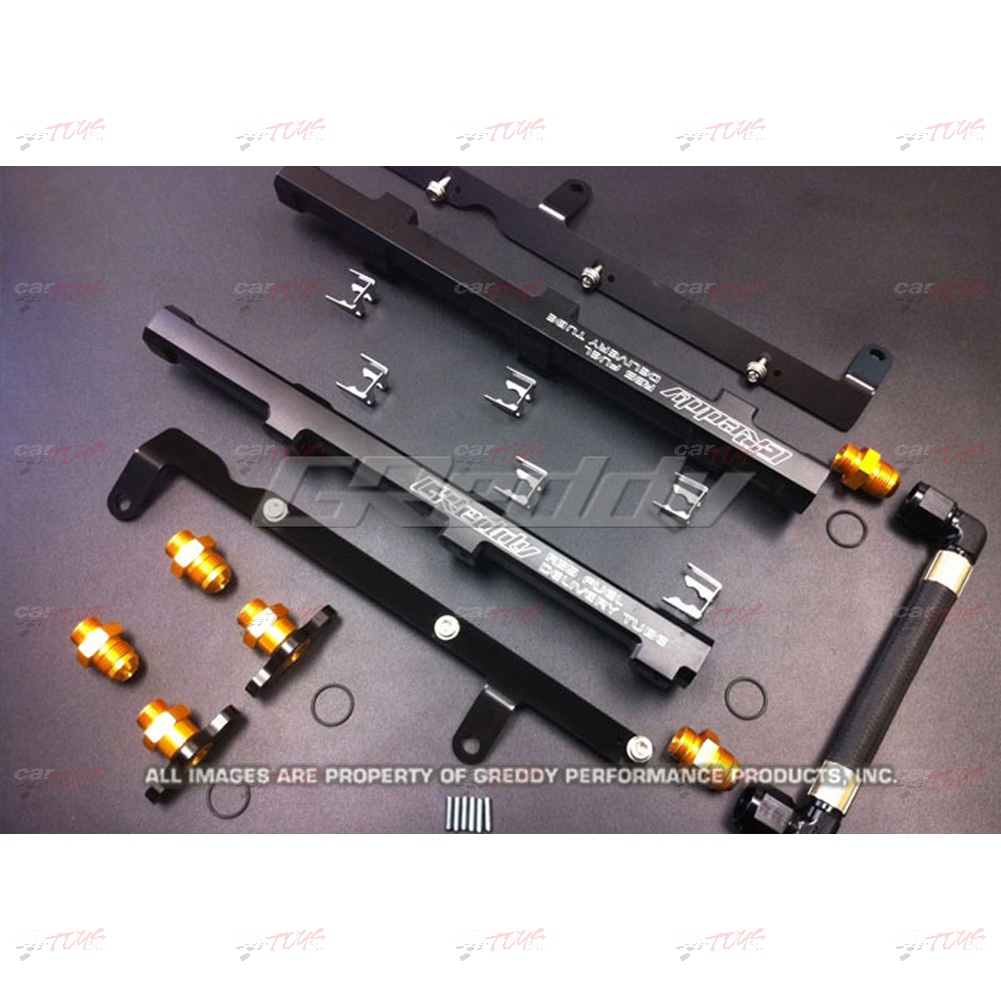

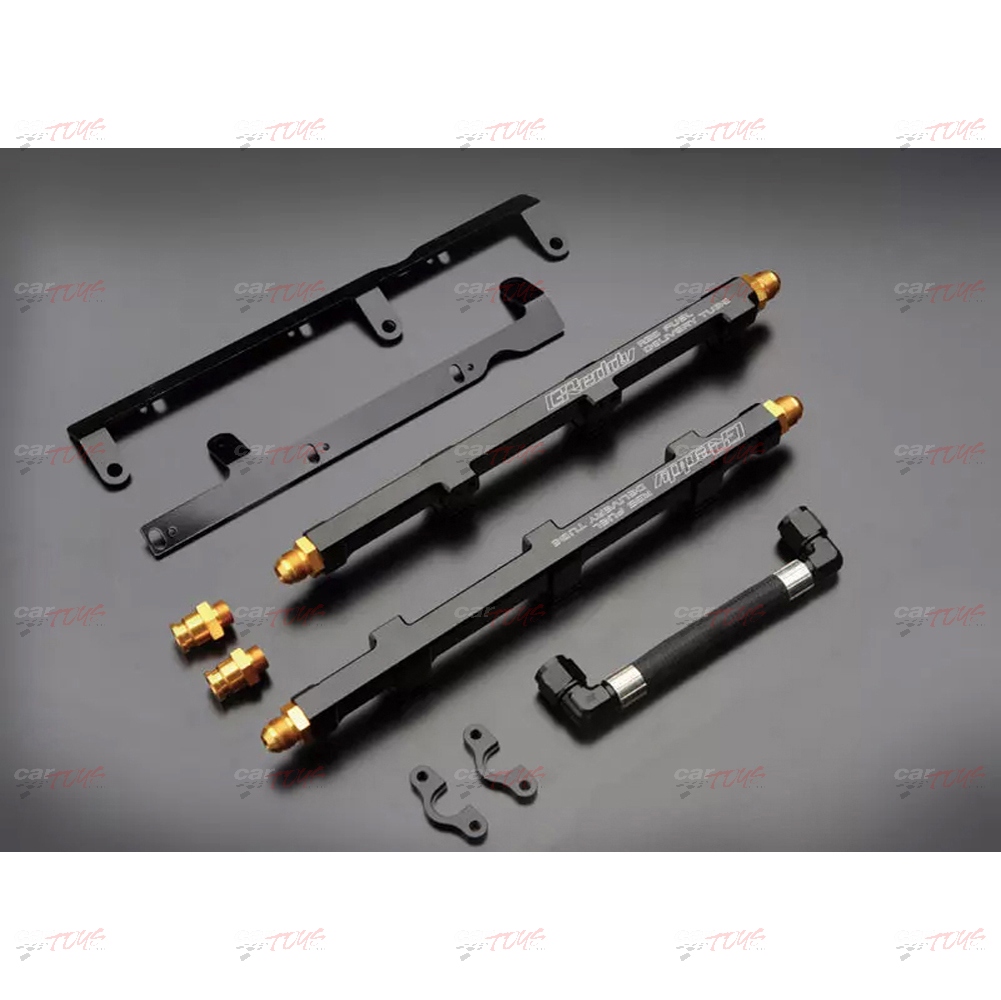

The TRUST GREDDY High Flow Fuel Rail Set Nissan GT-R R35 with all necessary fittings, block off plates and grommets for a direct ease of installation. Upgrading to a performance fuel delivery pipe is an excellent addition when changing injectors and going with an adjustable fuel regulator. This item will help ensure the integrity of your fuel delivery system while also an excellent engine bay dress up piece.

Brand: Trust GReddy
Product: High Flow Fuel Rail Set Nissan GT-R R35
Part Num: 13923101

SPECIFICATIONS:
Main Tube inner Diameter (mm): 14
Fitting (included): AN8

PRODUCT NOTES:
– With the included flanged fittings and 8AN fittings you can mount the factory fuel pressure regulator and the dampener right on the rail or customize with upgraded fuel pressure regulators
– By separating the mounting bracket from the main tube, the mounting height are adjustable, keeping the original injector mounting angle
– The adjustment range is 2.5mm above and 3.5mm lower from the original factory injector position
– When using upgrade injectors on factory fuel rail, the mounting brackets needs to be modified by slotting out the holes, but due to the injector length differences, and by the fuel rail being mounted crooked (not perpendicular to the injector boss), there are possibilities of fuel and/or air leak
