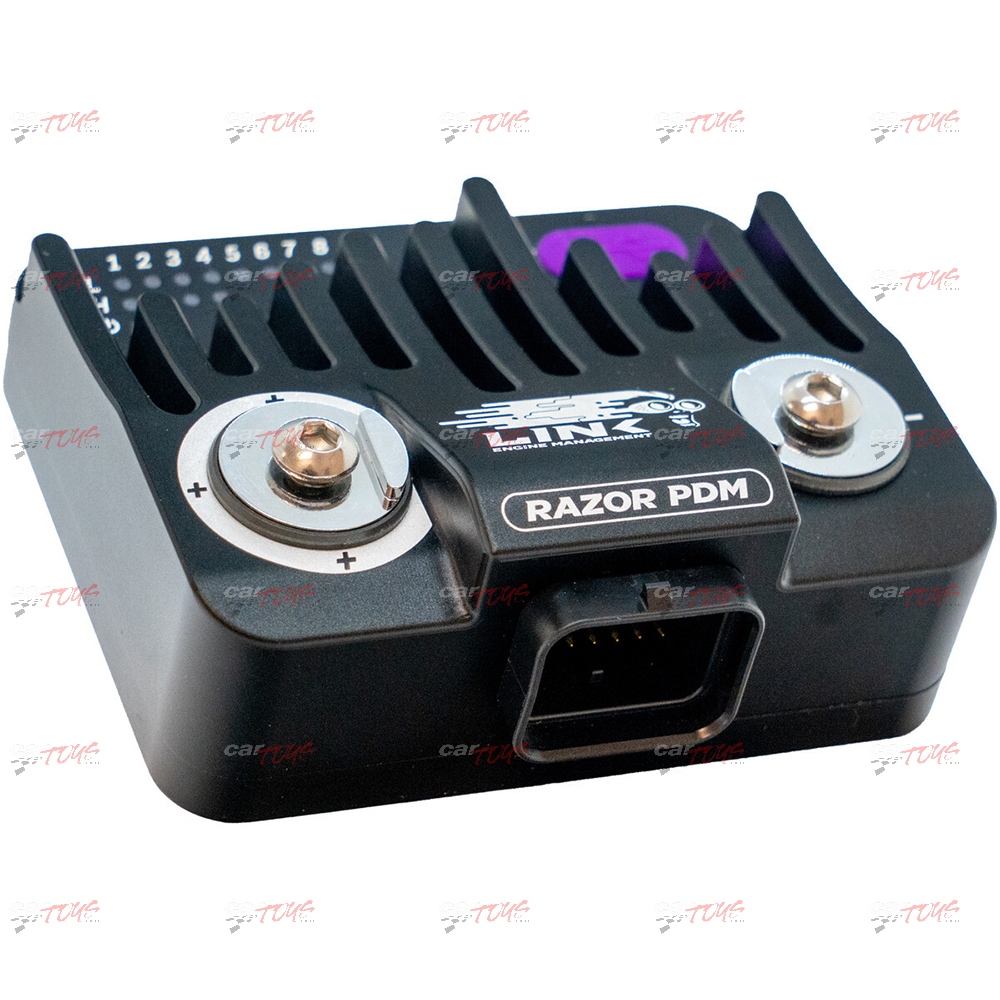

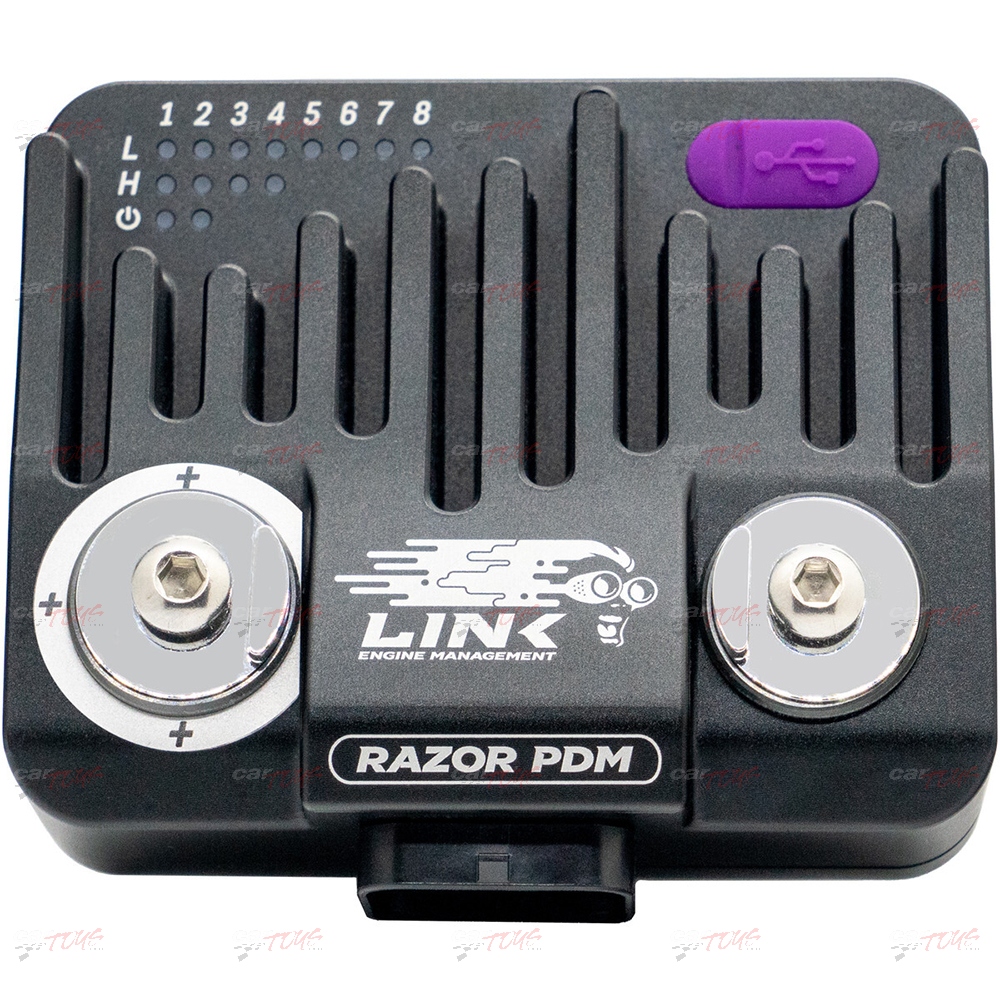

Razor PDM

Can be used in conjunction with a Link ECU or as a completely standalone device
4 high power outputs capable of 25A continuous, PWM, high side drive, low side drive, or paired for H-bridge actuator motor control
8 Universal A/D I/O pins, capable of 8A output each or as analog or digital inputs. Software controlled pull-ups and adjustable switching thresholds when used as inputs
Over-Current and Short Circuit Protection, with configurable trip and resettable fuse parameters
Flexible and powerful control strategies including internal general purpose PID control, math functions, logic expressions and CAN keypad functions
CAN keypad integration and flexible button logic, buttons can control PDM or Link ECU functions (G4X or G4+ with some limitations)
Logging support via CAN or USB
Multiple PDM support – Add additional units and simply connect via CAN
USB Configuration via PDM Link software (Windows only)
26 pin Superseal connector
Fully sealed CNC aluminium enclosure.
